Most people buy the wrong whole house water filter because they shop by brand instead of by lab report. If you have ever run a cartridge-only system for a year and the orange stains in the bathtub never went away, you already know the gap: the media has to match the contaminant. I spent six weeks comparing twelve point-of-entry systems, reading the lab-spec sheets line by line and cross-checking them against owner reports on well water, so you can match media to your own water instead of guessing.
Before anything else, test your water. A certified lab panel that covers iron, manganese, sulfide, hardness, pH, alkalinity, nitrates and coliform bacteria costs far less than a system you cannot use. The numbers on that report decide everything downstream, and no online list can do it for you.
Here is what I came back with: the best whole house water filters for well water are not one product but a short list of media types matched to four or five contaminant problems. Iron and manganese respond to catalytic reduction media, sulfur odor responds to oxidation, sediment responds to micron-rated pleated or spun cartridges, and bacteria need UV rather than carbon. Get that mapping right and the rest is flow rate and plumbing.
I also want to clear up the question that comes up constantly in well-owner forums: a whole house filter does not soften water. Filters remove particles, metals, odor and chlorine. Hardness is dissolved calcium and magnesium, and only ion exchange removes it, which means a softener is a separate piece of hardware.
If you also record at home, our desk has guides on pop filters for streaming microphones and Google Home devices for whole house audio that run the same test-first method we apply here.
Our Top 3 Whole House Water Filters for Well Water
The three systems below are the ones I would put in front of a friend with a private well. Each one earns its place for a different reason, so read the label before the spec sheet.
iSpring WGB21BM 2-Stage System
- Coconut shell carbon block plus FM15B iron and manganese stage
- Up to 15 GPM through 1-inch NPT ports
- Rated 50000 gallons
- Reduces iron from 3.0 ppm to 0.01 ppm
Express Water WH300SICS…
- Three stages built for iron and manganese
- Stainless steel free-standing frame
- Pressure gauges and release buttons
- 17 GPM and 100000 gallons
iSpring WGB32BM 3-Stage System
- 5 micron sediment stage plus carbon block plus FM25B
- 20-inch Big Blue housings
- Up to 15 GPM
- 100000 gallon combined capacity
The WGB21BM takes the top spot because it is the rare budget-priced cartridge system that targets iron and manganese with a dedicated second stage rather than hoping a carbon block handles it. With 4270 owner reviews at a 4.6 average, it is also the most thoroughly proven unit in this group.
Comparing 12 Whole House Well Water Filters Side by Side
This table covers every system in the roundup, including the two central-tank designs and the air injection oxidation unit that behave very differently from cartridge housings. Read the flow rating and the contaminant ceiling together, because those two numbers decide whether a system fits your well.
| Product | Specs | Action |
|---|---|---|
| iSpring WGB21BM 2-Stage Whole House Filter |
|
Check Latest Price |
| Express Water WH300SICS 3-Stage |
|
Check Latest Price |
| iSpring WGB32BM 3-Stage |
|
Check Latest Price |
 A. O. Smith AO-WH-Filter Central Tank |
|
Check Latest Price |
 iSpring WGB22BM 2-Stage |
|
Check Latest Price |
 Home Master HMF3SdgFeC 3-Stage |
|
Check Latest Price |
 Fleck 5600 SXT Air Injection Iron Filter |
|
Check Latest Price |

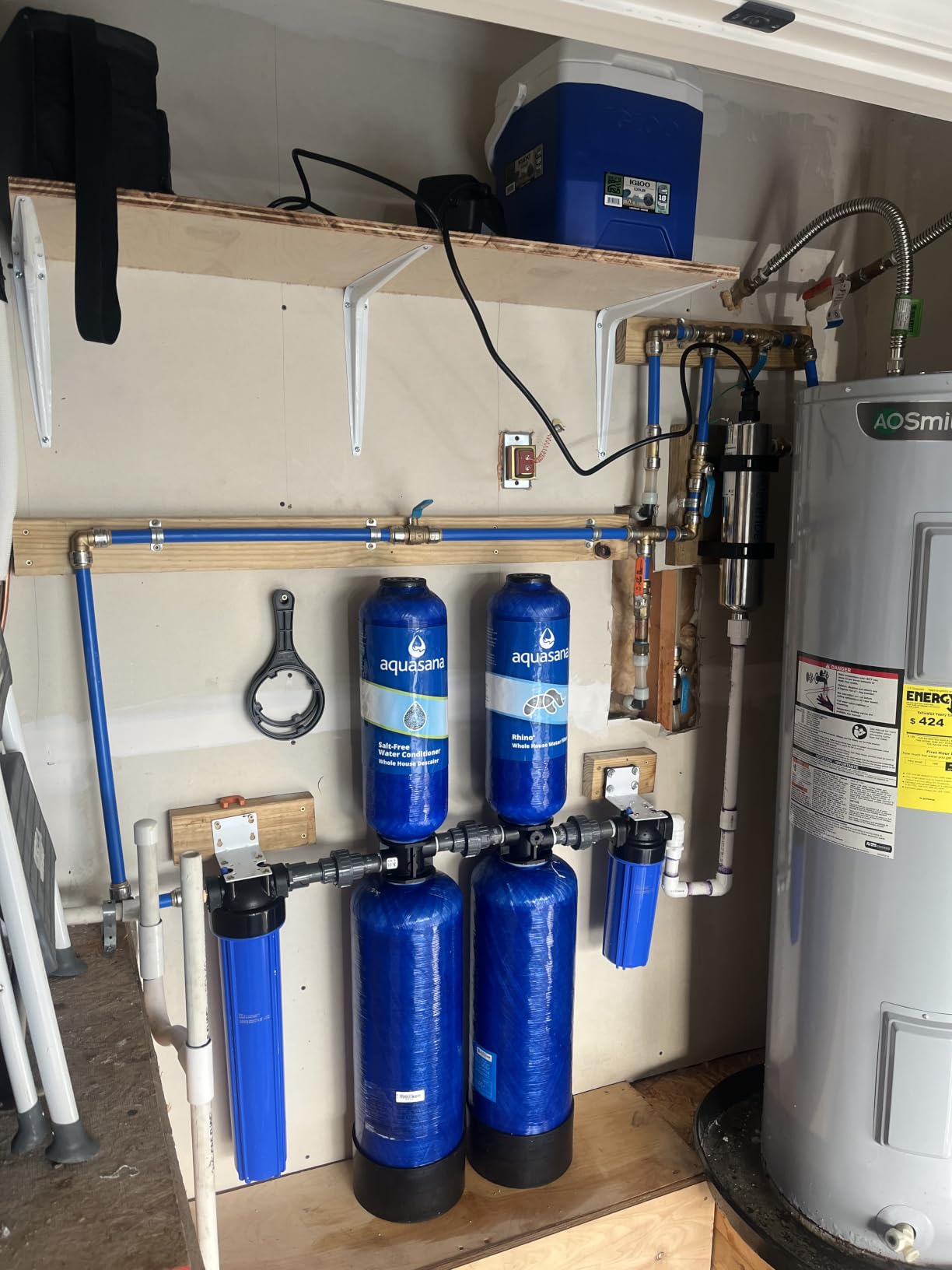

 Aquasana WH-Well-CT-UVS-B with UV |
|
Check Latest Price |

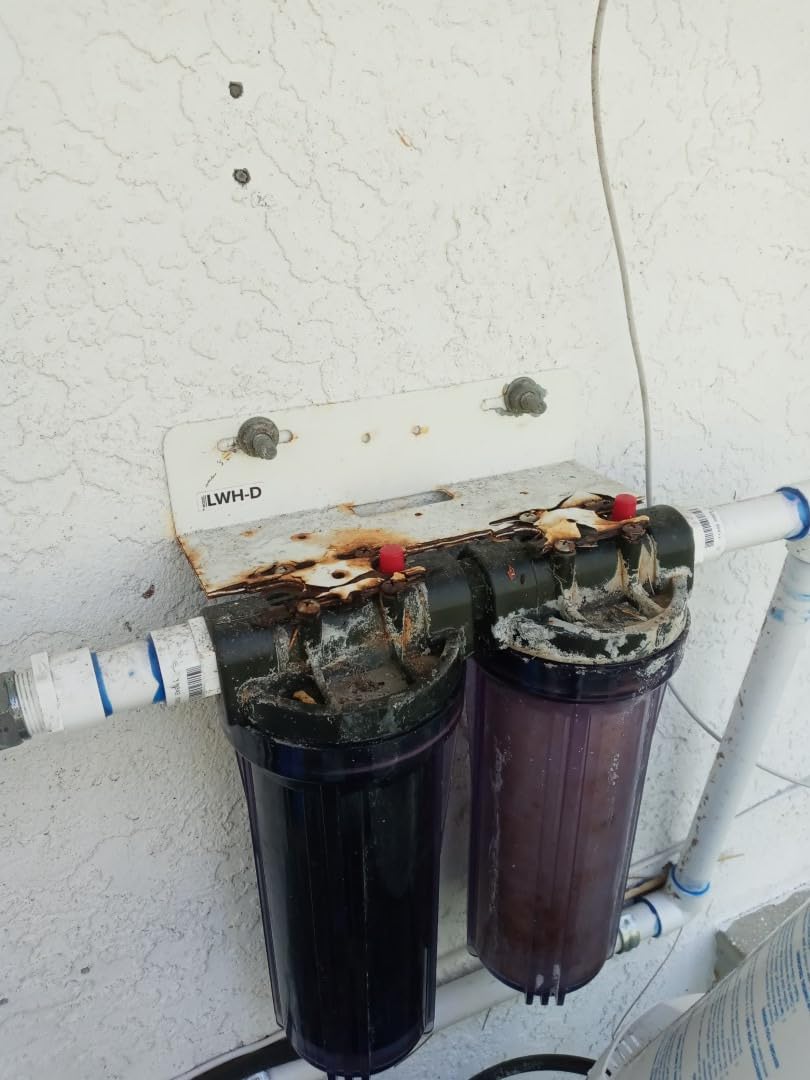

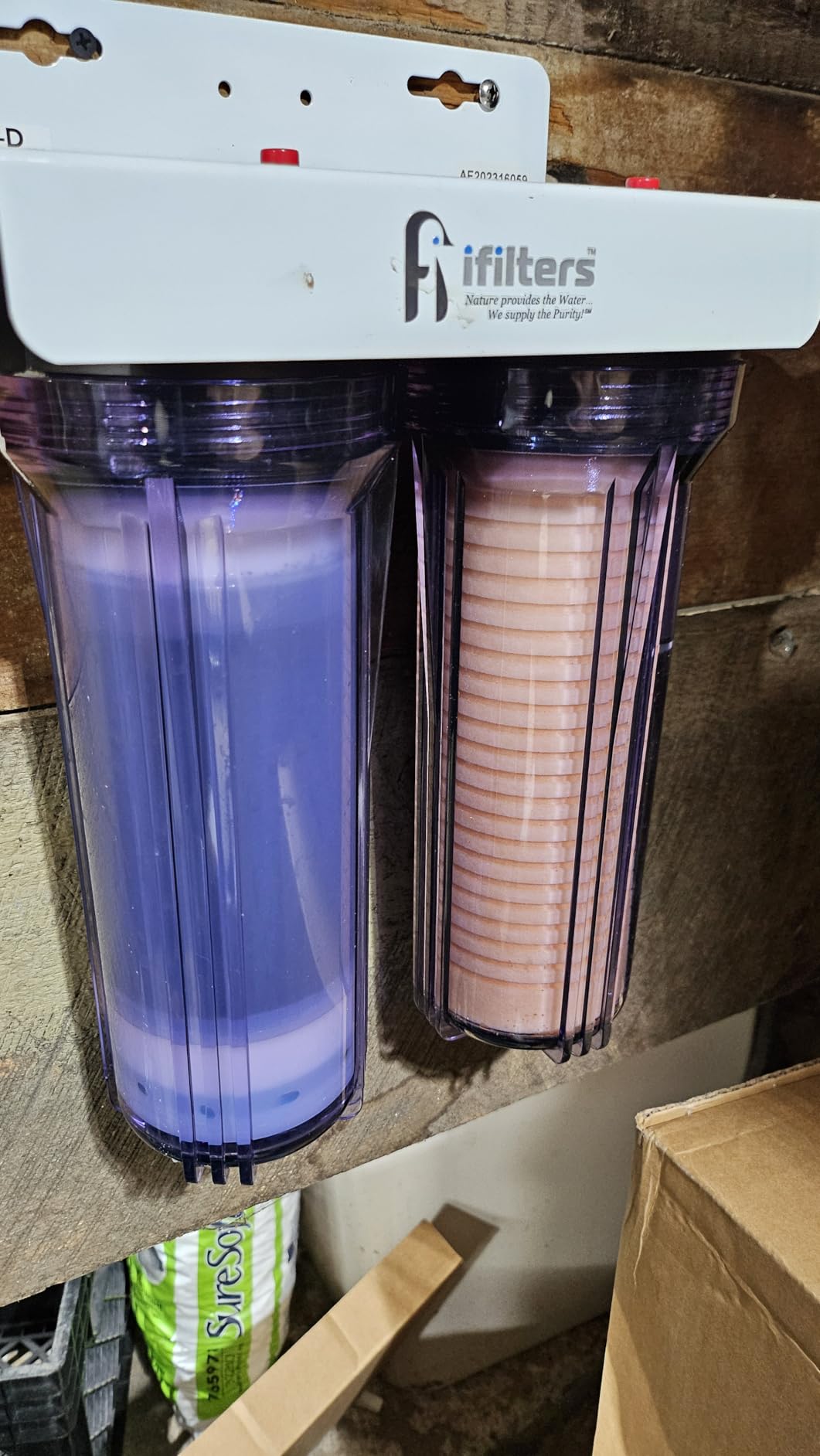

 iFilters MWH-D20-WELL 3-Stage |
|
Check Latest Price |

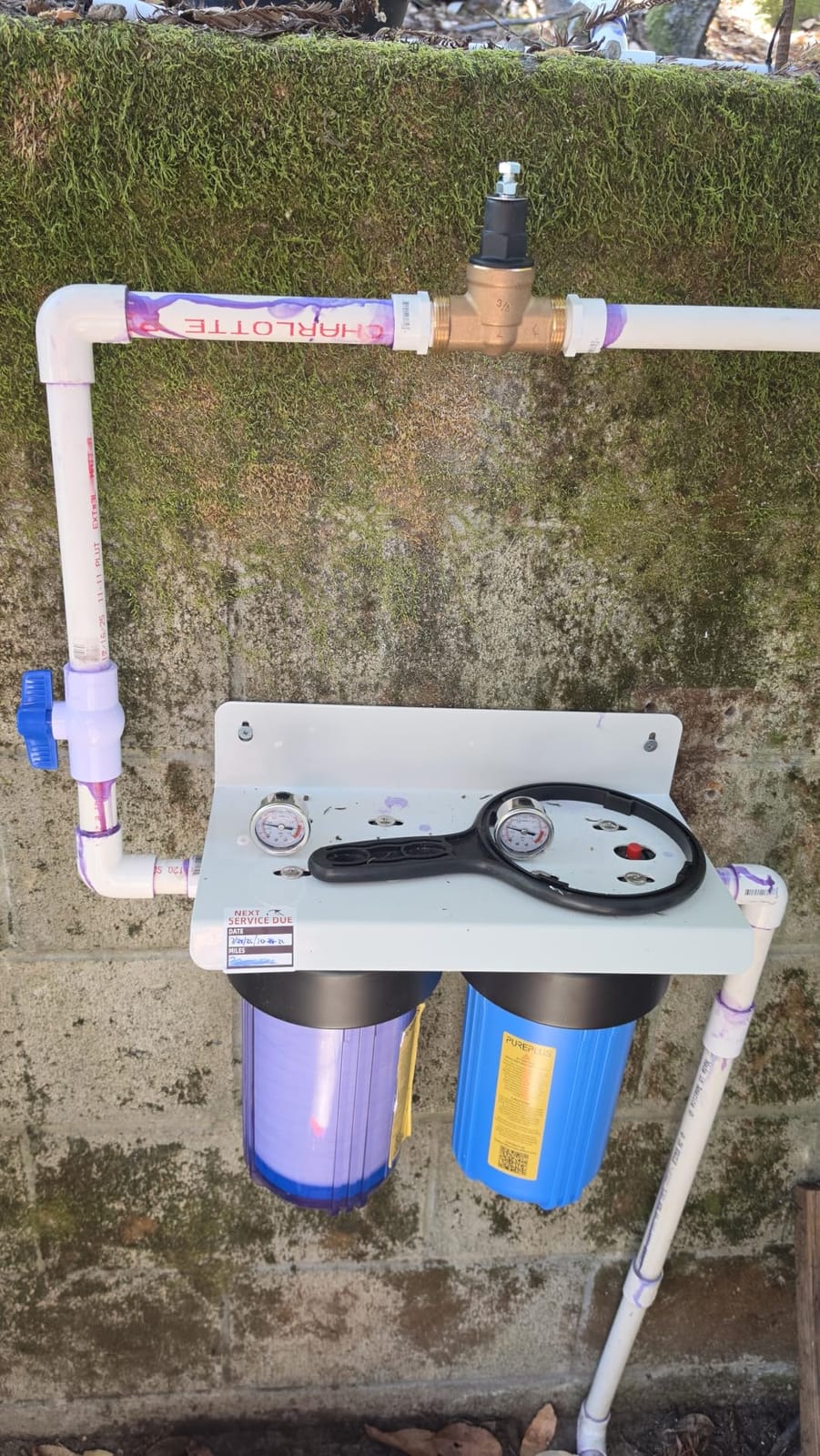

 PUREPLUS PP-WFM10BB2A-BBC-RSZ |
|
Check Latest Price |

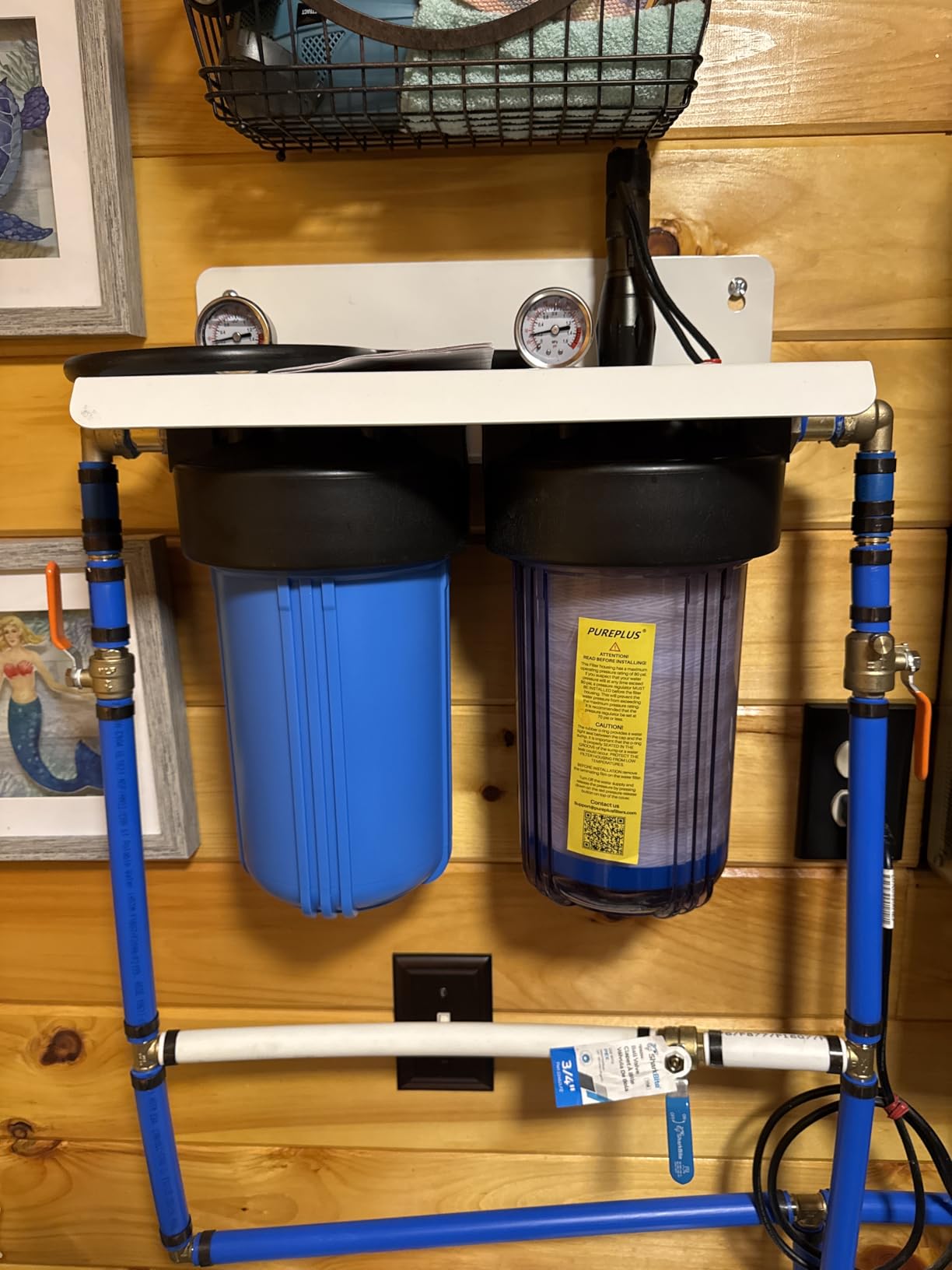

 PUREPLUS PP-WFM10BBT2-SZC Clear Housing |
|
Check Latest Price |

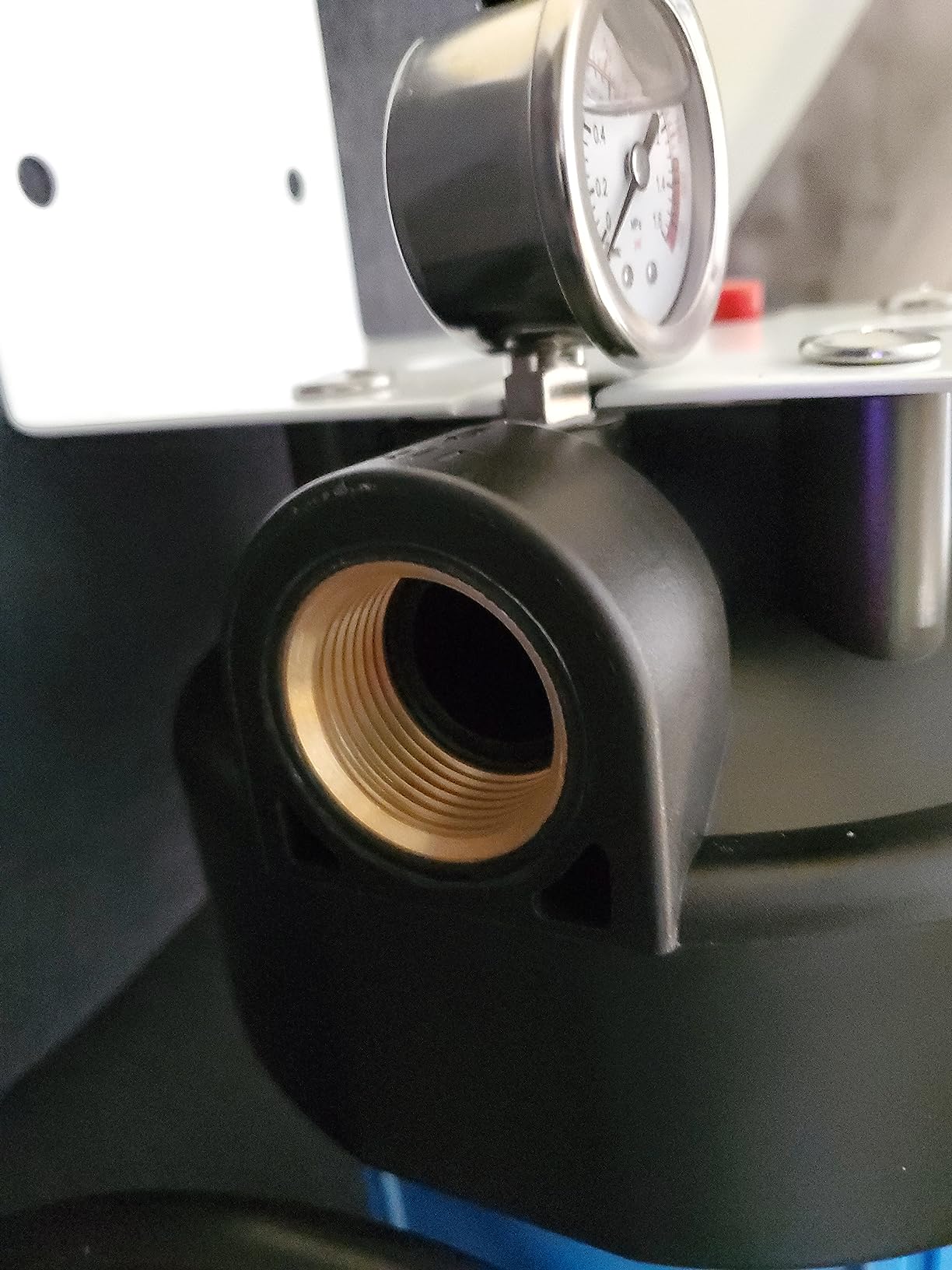

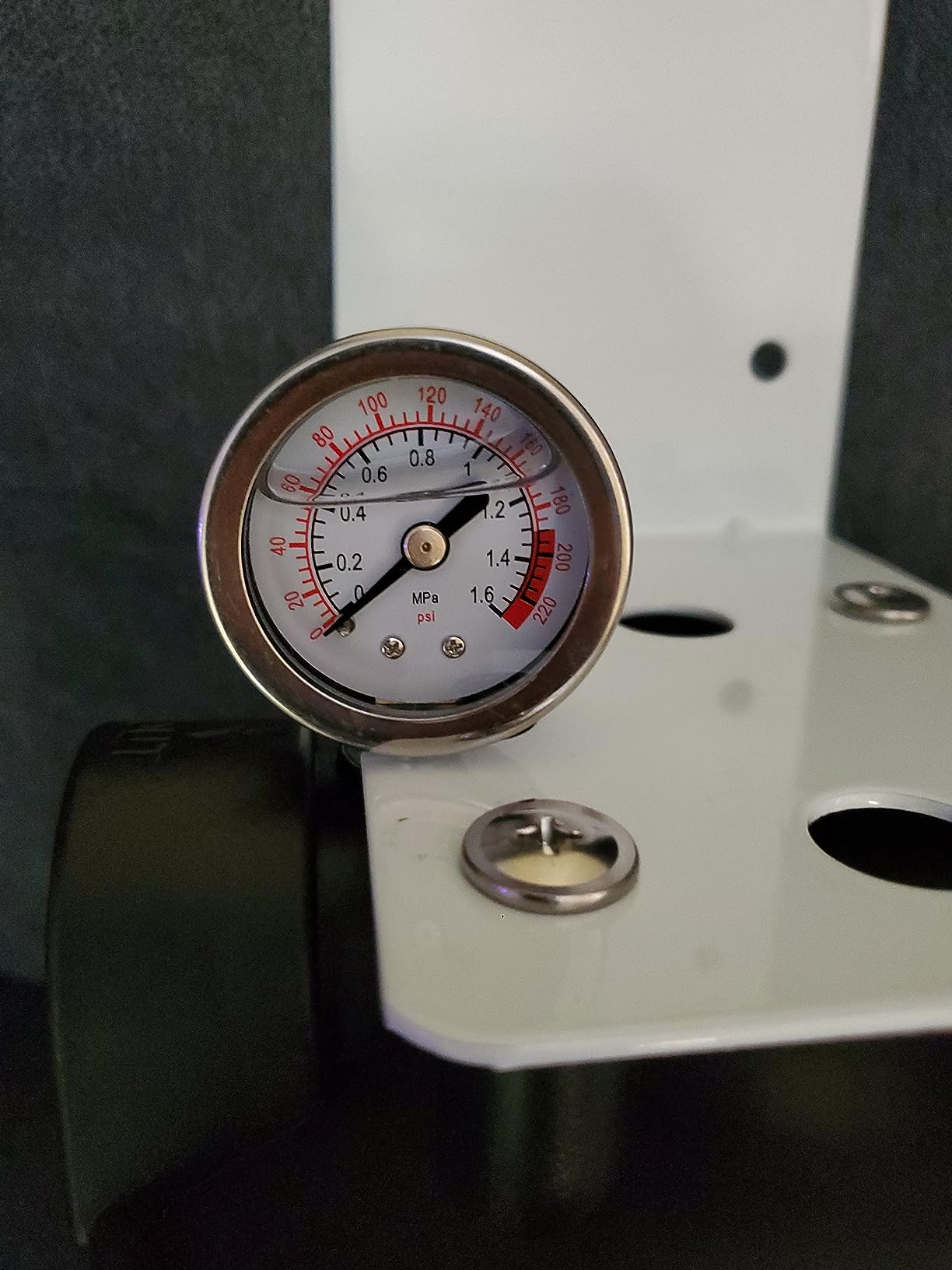

 PUREPLUS PPW10BB-SZ Single Stage |
|
Check Latest Price |
Two numbers in that table deserve attention. The A. O. Smith central tank runs at 7 GPM on 3/4-inch ports, which is genuinely tight for a family of four running two showers. And every KDF or iron-reducing cartridge in the list stops working past a stated contaminant ceiling, usually 3 ppm iron.
1. iSpring WGB21BM – Best Overall Whole House Water Filter for Well Water
iSpring WGB21BM 2-Stage Whole House Water Filtration System, 10” x 4.5” Carbon Block and Iron & Manganese Reducing Filters, 1″ Ports
2 stages: carbon block plus FM15B iron and manganese
15 GPM flow
50000 gallon capacity
1-inch NPT ports
Pros
- Dedicated FM15B second stage drops iron from 3.0 ppm to 0.01 ppm
- Pre-assembled on a mounting bracket for clean DIY installation
- Heavy duty housings with double O-rings
- Reversible flow direction fits more plumbing layouts
Cons
- 1-inch NPT fittings are leak prone and need heavy PTFE tape
- Housings may not screw in fully leaving a visible gap
- Heavy sediment loading can cause a pressure drop after a change
This is the unit I kept coming back to. It is a two-stage whole house water filter where the first stage is a coconut shell carbon block and the second is an FM15B iron and manganese reducing cartridge, and that second stage is the reason it works on well water where a carbon-only system does nothing.
Owner reports describe the same arc: orange staining on fixtures fading within days, cloudiness clearing, and the metallic taste going quiet. At 11.7 kg the assembly is heavy but manageable, and it arrives pre-assembled on its bracket so the only real work is cutting into the supply line and sealing two 1-inch NPT joints.
Those joints are the one recurring headache. Multiple reviewers describe small leaks at startup that resolved with generous thread sealant and silicone grease on the O-rings. I would budget an extra roll of PTFE tape and a union fitting or two before you start.
Iron and Manganese Reduction Where It Matters Most
The stated performance is iron from a maximum of 3.0 ppm down to 0.01 ppm, and manganese from a maximum of 1.0 ppm down to 0.01 ppm. Those are the numbers to compare against your lab report before you buy anything, because the ceiling is the whole story on this category.
If your report shows 4 ppm iron, this cartridge will not finish the job. You would need an oxidation or catalytic system such as the air injection unit further down this list. Below 3 ppm, the FM15B media handles it, and reviews from well owners confirm visible stain reduction on laundry, sinks and toilets.
Flow Rate, Port Size and Whole-House Sizing
Rated to 15 GPM through 1-inch NPT inlet and outlet, it clears the peak demand of a three or four person household with two or three bathrooms running at once. The pressure drop buyers report after a cartridge change is usually a sign the sediment stage is loaded, not a sign the housing is undersized.
Capacity and the Real Annual Running Cost
The carbon block is rated to 50000 gallons with a one-year filter life, which is the number most cartridge systems in this roundup converge on. Replacement is a wrench and two cartridges, and doing it on a schedule rather than by taste keeps the media from channelling.
The housing does not fully thread down on some units, which is cosmetic but worth knowing before you mount it in a finished utility room. iSpring backs the unit with a thirty-day money back policy and a one-year limited manufacturer warranty.
What It Will Not Do
It does not reduce total dissolved solids, so the healthy minerals in the water stay in place. It also does not soften, which means scale on a kettle or dishwasher decanter is a hardness problem, not a filtration problem, and no cartridge in this class fixes it.
The practical verdict: if your iron sits under 3 ppm and your flow needs sit under 15 GPM, this is the highest-confidence choice on the market for the money.
2. Express Water WH300SICS – Best Value Three-Stage System for Iron-Heavy Wells
Express Water Whole House Water Filter System, Iron & Manganese, 3-Stage
Three stages designed for iron and manganese
Stainless steel free-standing frame
17 GPM maximum flow
100000 gallon capacity
Pros
- Three-stage design built specifically for iron and manganese
- Stainless frame feels more robust than plastic brackets
- Pressure gauges and release buttons on each housing
- NSF-certified cartridges
- 17 GPM is higher than most competitors
Cons
- Does not reduce total dissolved solids
- Cartridges need replacement every 6 to 12 months
- Free-standing frame needs more floor space than wall housings
Where the WGB21BM is compact, this one is built like equipment. The stainless steel bracket and free-standing frame at 57 pounds feel like a permanent fixture, and at 23.5 by 8.5 by 29.25 inches it needs a real corner of the mechanical room rather than a wall gap.
What earns it the second slot is the 17 GPM flow rating, the highest among the cartridge systems here, and the fact that the whole train is NSF-certified. Owners on well water report the reddish-brown staining on fixtures and laundry easing noticeably once the media had cycled through.
The tradeoff is cartridge cadence. The spec sheet calls for replacement every 6 to 12 months or at 100000 gallons, and the deluxe frame means you are replacing heavier cartridges than a two-housing setup would need.
Three Stages and Why the Order Matters
The system is built around iron and manganese reduction, with a sediment stage protecting the reactive media behind it. That ordering is not cosmetic. Iron media gets blinded by grit, and a well that dumps sand into the supply will chew through stage two in a fraction of the rated life.
Operating range is 20 to 80 psi and 40 to 100 degrees F, with a maximum supported TDS level of 800 ppm. If your water runs harder or saltier than that, the media performance drops off and you should be looking at an oxidation system instead.
Pressure Gauges as a Maintenance Tool
Each housing carries a gauge and a pressure release button, and that is the difference between maintenance you can plan and maintenance you react to. Watch the gauges after a heavy rain, replace the cartridge when the delta climbs, and you keep flow steady without chasing complaints.
The manufacturer recommends installing this train at the water inlet ahead of a softener, which protects the softener resin from sediment and iron. That placement also means a cartridge change does not require draining or moving the softener.
Total Capacity and Placement in the Plumbing
At 100000 gallons the combined capacity comfortably covers a family of four for about a year on typical household use. The free-standing format is a genuine space consideration in a finished mechanical room, and the gauges on the front add a few inches of depth you need to plan for.
Replacement media is sold as the FLTWH2045ICS1 cartridge, so check that part number before you commit. Keeping the model on hand is the difference between a ten-minute swap and a two-week search.
My take: pick this when floor space is available and iron is your primary complaint. The stainless frame and the 17 GPM rating are the reasons it earns a place on any short list.
3. iSpring WGB32BM – Top Rated Three-Stage Filter for Sediment-Heavy Wells
iSpring WGB32BM Iron, Manganese Whole House Water Filter System
5 micron sediment plus carbon block plus FM25B
20-inch Big Blue housings
15 GPM flow
100000 gallon combined capacity
Pros
- Immediate clearing of rust coloured water and staining
- 5 micron sediment stage protects the media behind it
- 100000 gallon capacity suits a family of four for a year
- Technical support ships replacement parts quickly
Cons
- 20-inch cartridges are heavy and cannot be drained
- 1-inch NPT plastic threads leak without lubrication
- Unclear tightening instructions on the blue housings
This three-stage system is the one I would point at when a well pulls sand or grit every time it rains. The first stage is a polypropylene sediment filter rated to 5 microns, and it exists so the carbon and iron stages behind it stop getting buried.
Owners report the most dramatic before-and-after in this group. Rust-coloured water clears, the stains stop, and the water becomes drinkable and odour-free within days of the changeover. A 4.6 average across 1401 reviews is the highest rating-to-volume balance in the roundup outside the WGB21BM.
At 55 pounds the assembly is substantial, and 24.5 by 8 by 28 inches means it needs a two-person lift onto the wall. Working range is 25 to 80 psi and 40 to 100 degrees F.
The 5 Micron Sediment Stage Is the Whole Argument
Most well complaints that look like filtration failure are actually sediment blinding. A 5 micron polypropylene first stage catches grit early, which protects the carbon block from channeling and the FM25B media from coating over. Skipping that stage is the most common reason cartridge systems disappoint.
The second stage is a coconut shell carbon block for chlorine, VOCs, taste and odour, and the third is an FM25B filter rated to pull iron from 3.0 ppm and manganese from 1.0 ppm. The staging gives you a maintenance decision: which cartridge loaded up, and you can swap just that one.
Iron Reduction Ceiling and What Happens Above It
Same 3 ppm iron and 1 ppm manganese ceiling as the rest of the iSpring cartridge family, which makes it the right pick when those numbers are in range. Above them, owners are pointed toward iSpring catalytic media systems, and the same logic applies to the air injection tank further down.
One practical note from the reviews: the bracket flow direction sometimes needs reversing to match existing plumbing, and reversible flow is supported, but you have to plan for it before you commit the layout.
Sealing the 1-Inch Connections
The dominant negative theme across reviews is installation sealing, not filtration performance. Multiple owners resolved startup leaks with many wraps of thread tape and silicone-greased O-rings, and the unclear tightening guidance on the blue housings is called out directly.
There is no built-in drain or pressure relief fitting to simplify changes, so plan on a bucket and a towel. Non-technical owners report successful DIY installs with PEX and push-fit fittings, which is a reasonable alternative to threading plastic NPT by hand.
What It Does Not Handle
It does not reduce total dissolved solids, and it does not soften. If hardness is above roughly 15 gallons per gallon you are layering a softener onto this, not substituting it for one.
Best fit: a well with visible sediment plus moderate iron, where you want both problems handled by one housing wall and one set of change intervals.
4. A. O. Smith AO-WH-Filter – Best for Lowest Annual Running Cost
A. O. Smith Whole House Water Filter System | 600K Gal | AO-WH-Filter
Central activated carbon tank
600000 gallon or 6 year media life
7 GPM flow
3/4-inch inlet and outlet
Pros
- 600000 gallon and six year service interval is rare in this class
- Reduces 96.9 percent of chlorine taste and odour
- No drainage or backflushing waste
- Six year limited warranty and simple DIY install
Cons
- Will not reduce iron
- sulfur or total dissolved solids
- 7 GPM and 3/4-inch ports are lower than 1-inch competitors
- A pre-filter is recommended to protect the central tank
Everything else in this roundup asks you to open housings once or twice a year. This one asks you to do nothing for six years, and that is a genuinely different ownership experience for a household that does not want to think about water at all.
The mechanism is a central fiberglass tank at 30.2 by 9.5 by 9.4 inches holding activated carbon, treating drinking, cooking, showering and bathing the way a softener would. There is no drain line, no backwash cycle and no water waste, and the 96.9 percent chlorine taste and odour reduction is the headline claim.
Working range is 20 to 100 psi and 40 to 90 degrees F, and the unit carries a six-year limited warranty.
Why It Is Not a Well Water Iron Solution
Be clear about this. The system does not reduce iron, sulfur or dissolved solids, which is exactly the reason its 4.3 average sits below the cartridge systems. On a well with orange staining and a rotten-egg smell, it will not solve the problem you are trying to solve.
What it is good for is chlorinated supply and general taste and odour improvement at very low ongoing cost. The included shut-off valve, nipple and hose adapter make the install straightforward, and the manufacturer rates it for households of four or more.
Flow Rate and Port Size Are the Constraint
Seven GPM through 3/4-inch ports is the tightest plumbing in this roundup. For a family of four with two showers and a laundry cycle running together, that is a real pressure-drop risk, and it is the single strongest reason to pass on this system for a busy well.
It also runs in a category of its own structurally. The other eleven are inline housings bolted into a pipe run; this is a central tank plumbed like a softener. If you have already had a softener installed, the footprint and layout will feel familiar.
The Six-Year Interval Changes the Math
Compare 600000 gallons of media life against a 30000 gallon cartridge and the cost per gallon gap becomes obvious quickly. For homeowners on municipal or lightly treated water who want chlorine gone and nothing else, that is the entire decision.
A pre-filter upstream is recommended to protect the central tank, which adds cost the sticker price does not show. Budget for that as part of the system rather than a future upgrade.
My take: superb for chlorine and taste on chlorinated supply, and the wrong tool for an iron-stained, sulfur-smelling well. Know which problem you have before this one makes the short list.

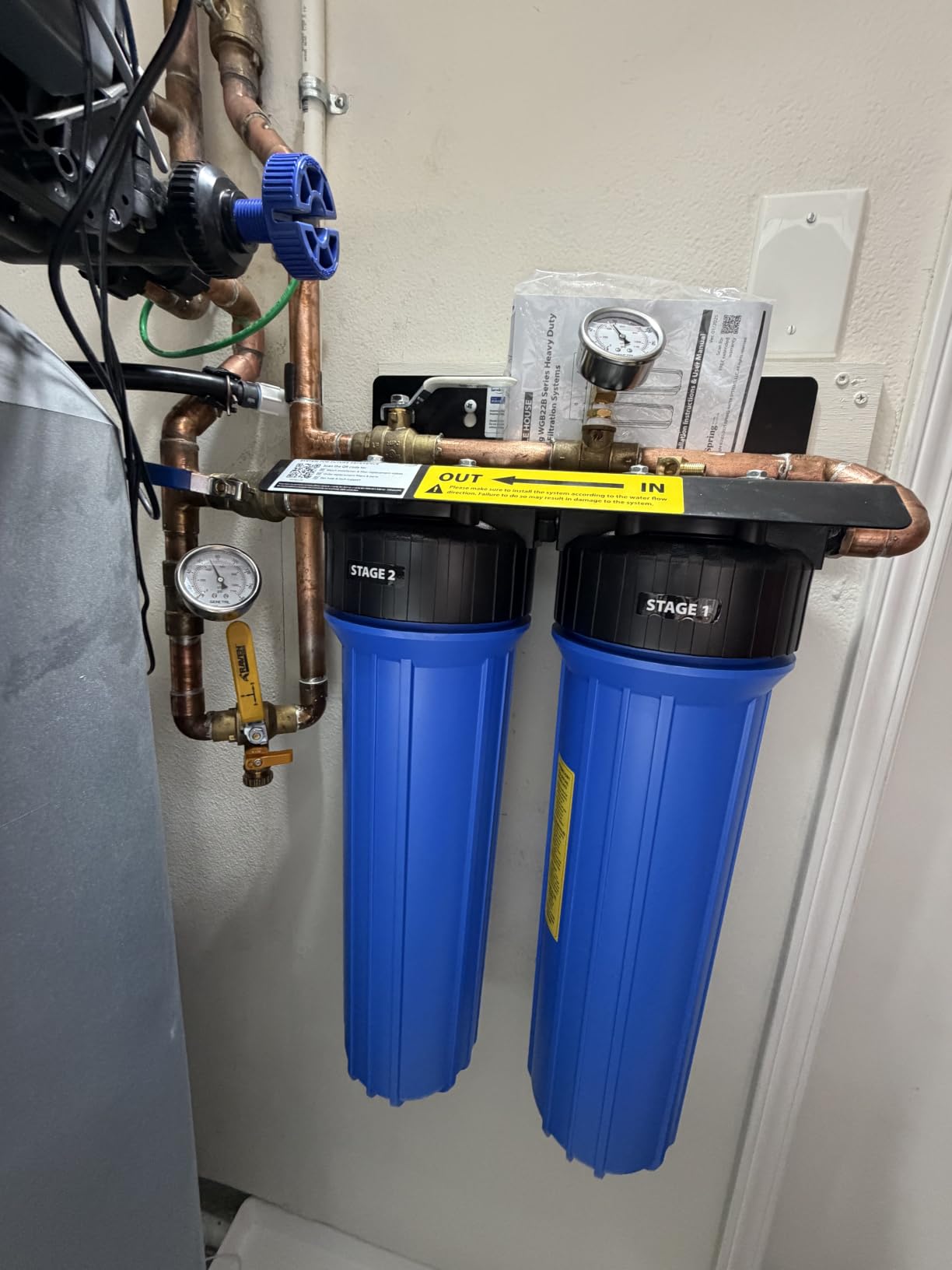

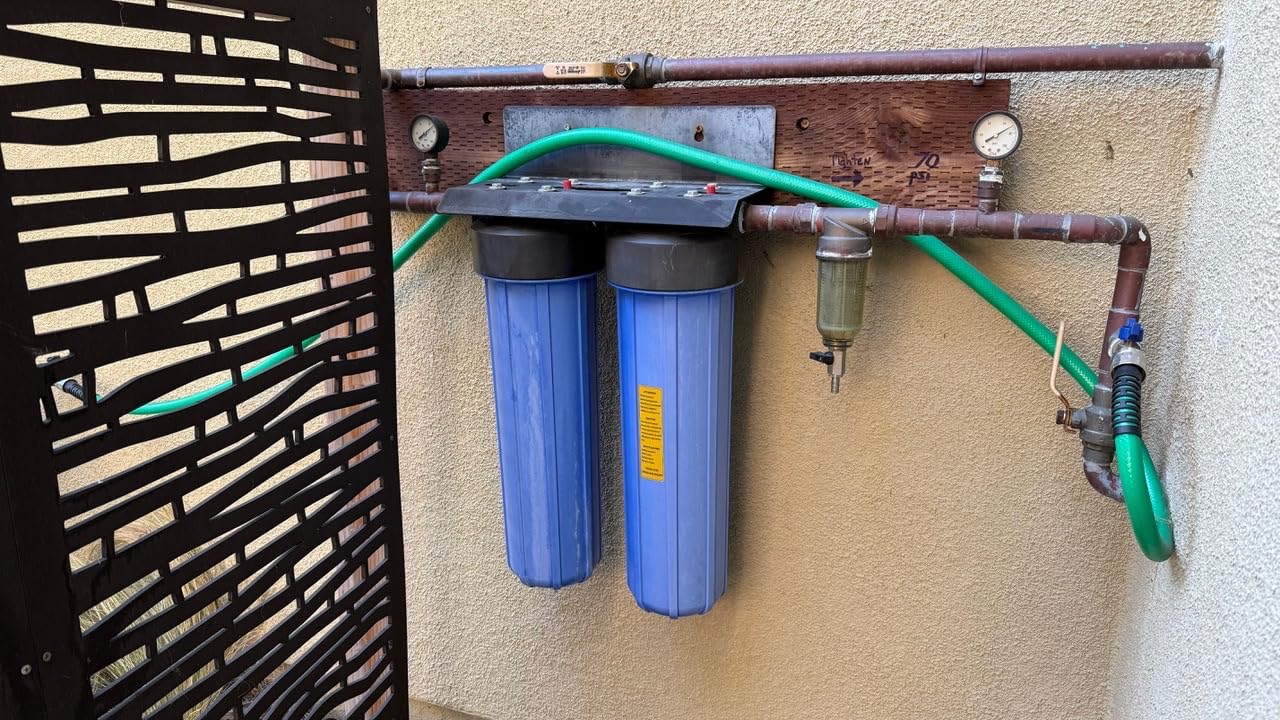

5. iSpring WGB22BM – Best Two-Stage Commercial-Grade Housing Pair
iSpring Iron, Mangaese Whole House Water Filter System Also Eliminates Chlorine, Taste, and Odor, 2-Stage Commercial-Grade 20″ x 4.5″ Industry Standard-Sized Filters, 1″ Inlet/Outlet, Model: WGB22BM
Coconut shell carbon block plus FM25B iron media
20 x 4.5 inch commercial housings
15 GPM flow
100000 gallon capacity
Pros
- Commercial grade 20 inch housings sized for real whole house flow
- Reduces iron up to 3.0 ppm and manganese up to 1.0 ppm
- Cuts up to 99 percent of chlorine
- Independently tested to NSF/ANSI standards
Cons
- Only rated to 3 ppm iron and 1 ppm manganese
- Does not reduce total dissolved solids
- 20-inch cartridges are heavy to service
Where the WGB21BM uses 10-inch housings, this one uses 20-inch commercial grade cartridges, and that size difference is the reason to choose it. Bigger housings hold more media, which means a longer interval between changes and more tolerance for dirty well water.
Buyers with 83 percent five-star ratings credit it with clearing iron staining, sulfur odour and chlorine taste on well water while keeping flow steady. At 4.6 across 820 reviews it sits alongside the WGB21BM for proven performance.
Maximum supported TDS is 500 ppm and the operating range is 25 to 80 psi, with a temperature range of 40 to 100 degrees F. At 40 pounds the assembly is heavy but wall-mountable at 16 by 8 by 28 inches.
Why Housing Size Beats Cartridge Count
A 20 by 4.5 inch housing holds several times the media volume of a 10 by 4.5 inch housing. More media means a lower pressure drop at the same flow, which is the difference between a house that feels normal at peak demand and one that feels like it lost water pressure.
That is the trade in this whole category. Three 10-inch stages give you finer sediment control and more failure isolation, but a pair of 20-inch stages gives you more media in less wall space and fewer seals to worry about at install time.
The 3 PPM Ceiling Is the Dealbreaker to Check
Iron to 3.0 ppm and manganese to 1.0 ppm. Cross-reference that with your report before you order, because above it, owners are directed to a catalytic media system rather than a reducing cartridge.
Chlorine reduction is rated at up to 99 percent, which matters if you are on a well that has been chlorinated as a shock treatment. The media pairing handles taste and odour alongside the metal reduction rather than treating them as a separate problem.
Support and Warranty
Coverage is a one-year manufacturer warranty plus lifetime technical support, and reviewers repeatedly mention install videos and a comprehensive manual. That combination matters most at the sealing stage, which is where plastic NPT housings usually leak on first attempt.
Living minerals are preserved and total dissolved solids are not reduced, so this stays a filtration device rather than a desalination step.
My take: choose this when your iron is under 3 ppm and you want a two-housing wall with generous media volume instead of a three-housing one.
6. Home Master HMF3SdgFeC – Best for 1 Micron Polishing and Fine Sediment
Home Master Whole House Three Stage Water Filtration System with Fine Sediment, Iron and Carbon, Blue
Three stages: sediment, iron/manganese, carbon
4-layer 25-10-5-1 micron cartridge
15 GPM flow
100000 gallon capacity
Pros
- Removes up to 95 percent of iron
- manganese
- sediment and chemicals to a 3 ppm combined load
- Four-layer 25-10-5-1 micron cartridge offers fine filtration
- 1-inch port housings sustain 15 GPM
- Users report improved water pressure
Cons
- Copper to plastic fittings can leak and melt near a soldering torch
- O-rings can pop out of the housing groove
- Sediment cartridge can fill with sludge in under 3 months
The distinguishing feature here is the four-layer 25-10-5-1 micron replaceable sediment filter. Coarse layers catch grit, the fine layers polish, and that grading is what gives a well with heavy suspended solids a fighting chance before the reactive media downstream.
Owners on well water report the sulfur smell, orange staining and rust discoloration disappearing, and several note improved overall water pressure once the fine stage stopped fouling the line. Rated to remove up to 95 percent of iron, manganese, sediment and chemicals at a combined load of 3 ppm.
The system runs 20 to 95 psi, tolerates up to 2000 ppm TDS, and covers a 40 to 100 degree F range. Warranty is two years on parts, and the manufacturer checks in with customers annually.
Graded Sediment Media and Dirt Holding Capacity
A 1 micron nominal rating is fine enough to catch particles that make water look cloudy and wear downstream appliances. The 25 and 10 micron outer layers are what keep that fine surface from blinding in week two, so the cartridge does its real work over months rather than days.
This is also the system to consider if your well pulls visibly dirty water after heavy rain. The 100000 gallon total capacity assumes reasonable sediment loading, and on a high-sediment well the fine cartridge can fill with sludge in as little as two and a half months.
The Hardware Is the Weak Point
Recurring complaints are mechanical rather than filtration-related. Copper-to-plastic fittings can leak and are easy to melt if you are soldering nearby, and O-rings have been reported losing diameter and popping out of the housing groove after use.
Another practical note: filtered cartridges reduce pressure enough that some owners needed larger supply lines or a pump upgrade. If your well already runs at low pressure, that is a real cost line to plan for.
Identifying Replacement Cartridges
Reviewers flag that the replacement media is harder to identify and ordering it is confusing. Sort that out before install day by confirming the exact model, HMF3SdgFeC, which is the well water variant, and finding its part number in advance.
The alloy steel bracket and included wrench make the physical swap straightforward once you have the right cartridge in hand. Plan a separate spin-down sediment pre-filter upstream if your well runs dirty.
My take: the finest sediment filtration in this roundup, and the pick for wells where clarity matters as much as stain removal.
7. Fleck 5600 SXT Air Injection Filter – Best for High-Iron Well Water
DuraWater Fleck 5600 SXT Air Injection Iron Eater Filter 1.5 cu ft, Black
Fleck 5600 SXT digital air injection control
1.5 cu ft Centaur catalytic carbon media
10x54 mineral tank
Automatic daily backwash
Pros
- Oxidizes and removes iron
- manganese and H2S odor
- Owners report iron dropping from 14 ppm to 0 ppm
- Automatic daily backwash means no manual media cleaning
- Media rated to last about five years
- Phone based customer service walks you through setup
Cons
- Air injection cone can drip slightly during the air draw cycle
- 15 minute daily backwash can overwhelm a septic drain field
- Digital control programming is confusing at first
Everything up to this point has a contaminant ceiling in the 1 to 3 ppm range, and that ceiling is why iron counts of 10 ppm and up defeat cartridge media. Air injection oxidation changes the mechanism entirely: the control valve draws air into the tank, oxygen dissolves into the water, and dissolved iron oxidises into a solid form that the carbon traps.
Owners report iron dropping from 14 ppm to 0 ppm on wells that no cartridge system in this roundup could have touched. Sulfur odour, metallic taste and fixture staining are reduced significantly compared with cartridge-only setups, and the media is rated for about five years before service.
At 65 pounds and 12 by 12 by 48 inches it is a floor unit, plumbed much like a softener, with a one-inch plastic bypass valve included and no power required beyond the valve itself.
Oxidation Versus Reduction and Why High Iron Demands It
Reducing media changes dissolved ferrous iron into a form it can grab directly. That chemistry has a limit, and once iron loads past it, capacity collapses. Oxidation dissolves oxygen into the water so the iron precipitates before it ever reaches the media, which is why this approach handles counts that would overwhelm a KDF cartridge.
One and a half cubic feet of Centaur catalytic carbon in a 10 by 54 mineral tank is a genuinely large contact volume compared with a cartridge. That is where the high-load performance comes from, and it is also why the tank is the size it is.
Backwash Scheduling and the Septic Caveat
The Fleck 5600 SXT runs an automatic daily backwash cycle, which is what makes this hands-off compared with cartridge changes. The practical advice recurring in reviews is to pair it with a spin-down sediment filter upstream to keep the carbon bed clean.
The default backwash of 15 minutes per cycle can be more water than some drain fields handle, so shorten the cycle if you are on a septic system. Long-term owners report multi-year reliability with 0 ppm iron readings once the settings were right.
Setup and Ongoing Service
The digital control programming is confusing at first, and phone-based customer service is repeatedly praised for walking owners through setup. Budget an evening for the initial programming rather than assuming it goes in live.
The air injection cone can drip slightly during the air draw cycle, and the manufacturer does not include instructions for draining the tank or a full carbon media spec, so get those in writing before you need them.
My take: if your lab report shows heavy iron, this is the only system here built for it. Everything cheaper is a compromise you will notice at the tap.
8. Aquasana WH-Well-CT-UVS-B – Best Multi-Stage System with UV Bacteria Protection
Aquasana Whole House Well Water Filter | 500K Gal | UV | EQ-Well-UV-PRO-AST
Carbon and KDF media with UV purification
500000 gallon or 5 year media life
14.7 GPM flow
Salt-free scale control included
Pros
- Multi-stage carbon
- KDF
- salt-free scale control and UV in one system
- Reduces 97 percent of chlorine and targets bacteria
- viruses and cysts
- 500000 gallon or five year media life with a five year warranty
- Salt-free scale control means no salt
- backwashing or chemicals
Cons
- Iron must be under 0.3 ppm
- Best for water under 15 gpg hardness and pH below 8.3
- 116 lb and 67 inches tall needs significant space
- UV stage needs electrical power and bulb replacement
This is the only system in the roundup that addresses bacteria, viruses and cysts, and it does it with a UV stage certified to NSF/ANSI Standard 55, Class B. On a private well with any history of coliform findings, that is a different category of protection from everything else listed here.
The train combines a pre-filter, carbon and KDF media, a salt-free conditioner, a post-filter and the UV reactor, rated to 500000 gallons or five years. The conditioner handles scale without salt, backwashing or chemicals, and healthy minerals are preserved rather than stripped.
Satisfied buyers highlight the long filter life, the absence of salt to manage, and a measurable drop in chlorine taste across the whole home. The 4.2 average reflects a specific and understandable complaint, which I will get to.
Read the Water Quality Limits Before Anything Else
This system is specified for iron under 0.3 ppm, hardness under 15 gallons per gallon, alkalinity under 250 mg/L and pH below 8.3, with a maximum supported TDS of 250 ppm. Those are unusually tight limits, and they explain the 4.2 rating better than any quality issue.
Owners whose well exceeded the 0.3 ppm iron or 15 gpg hardness limits report disappointing stain and odor performance despite a correct installation. If your iron is above 0.3 ppm, put the Fleck air injection system ahead of this one.
What the UV Stage Does and Does Not Do
UV inactivates bacteria, viruses and cysts as water passes the reactor, and chlorine reduction is rated at 97 percent. What it does not do is remove metals, sediment or dissolved solids, which is why the carbon and KDF stages upstream still matter.
The stage is corded electric, so you need a power outlet nearby and a plan for bulb replacement. It is a component that wears out, not a consumable you ignore for a decade.
Space, Weight and Total System Footprint
At 116 pounds and 67 by 11 by 57 inches this is by far the largest unit here, and it is plumbed and powered rather than simply bracketed to a wall. Measure the mechanical room before ordering, and plan the drain and electrical route along with the plumbing.
Working range is 20 to 100 psi and 40 to 90 degrees F, with a five-year limited warranty and a maximum flow of 14.7 GPM. The long media life is the reason the running cost per gallon stays low across that five-year window.
My take: the right call for a clean, low-iron well that has had bacteria findings. For most rusty well water, the oxidation tank is the more honest purchase.
9. iFilters MWH-D20-WELL – Best for Tannins, Odor and Washable Sediment Pre-Filtration
iFilters 4.5 x 20 Sediment CTO Heavy Metals Well Water Filtration System
Washable pleated sediment plus GAC and KDF stage
Dual 4.5 x 20 inch Big Blue housings
100000 gallon or 6-12 month life
1-inch ports
Pros
- Dual commercial grade housings handle high sediment well water
- Pleated sediment pre-filter is washable and reusable
- GAC and KDF stage reduces iron
- sulfur odor
- heavy metals and chlorine
- No measurable pressure loss after installation
Cons
- Close nipple between the two heads may arrive loose and leak
- O-rings can drip and replacement availability is inconsistent
- Water runs black for the first 20 gallons after install
The distinguishing feature is a washable, reusable pleated sediment pre-filter at stage one. Instead of throwing away a cartridge every few months on a sediment-heavy well, you rinse this one and put it back, and that changes the long-run cost more than any spec on the sheet.
Stage two is a combined granular activated carbon and KDF cartridge for chlorine, heavy metals, iron and sulfur odor. Most owners on well water report successful iron, tannin and sulfur removal with no change in water pressure, and they call the powder-coated mounting bracket high quality.
The system uses dual commercial grade 4.5 by 20 inch Big Blue housings with one-inch ports and includes a housing wrench and pressure relief valves. The replacement cartridge is the SP30-KDF2-4520, and service life is rated to 100000 gallons or 6 to 12 months.
Tannins and Why They Smell Like a Pond
Tannins are organic compounds that give well water a swampy, tea-colored cast. Activated carbon adsorbs organics far better than it handles metals, so the GAC side of stage two is doing the odor work here while the KDF handles iron and heavy metals.
If your complaint is a smell rather than a stain, this pairing is the right shape. Carbon-driven systems do very little to iron, so confirm your iron number before expecting visible stain changes.
The Washable Pleated Stage as a Cost Decision
A washable pleated cartridge trades micron fineness for service life. It is not a 1 micron polish like the Home Master system, but it survives sediment that would blind a disposable cartridge in weeks, and rinsing it restores most of its capacity.
That makes the effective cost per gallon much lower than the headline cartridge price suggests, provided you actually rinse it. Get in the habit of checking it monthly and it becomes the lowest-maintenance part of the system.
Two Installation Details That Catch People Out
First, the close nipple between the two filter heads can arrive loose and leak, so check that joint before you pressurise. Housing O-rings can also drip, and replacement availability has been inconsistent, so keep a spare on hand.
Second, expect shaded or black water for the first 20 gallons as the carbon stage activates. That is normal. Run a full hot tap and a cold tap until it clears, and do not judge the system on the colour of the first glass.
One owner reported heavy iron staining after installation on a high-iron well, so treat stage two as a moderate-load solution rather than a high-load one.
My take: the best washable pre-filtration in this roundup, and a strong match for tannin and sulfur odor complaints.
10. PUREPLUS PP-WFM10BB2A-BBC-RSZ – Best NSF 42 Certified Budget Two-Stage System
PUREPLUS 2-Stage Whole House Water Filter Reduces Chlorine, Iron, Manganese
Sediment and carbon stage certified to NSF/ANSI 42
Iron reduction second stage
30000 gallon capacity
Dual pressure gauges included
Pros
- Stage one is certified to NSF/ANSI 42 for sediment and carbon
- Second stage reduces iron from 3.0 ppm to 0.01 ppm
- Includes dual pressure gauges
- bracket and wrench
- Compact housing pair fits tight utility spaces
Cons
- Only 8 customer reviews so long term durability is unverified
- Mixed feedback includes reports of no iron reduction
- 30000 gallon capacity means frequent cartridge changes
This is the entry point on my list and the one I would be most careful recommending. The hardware is sensible: a multi-layer polypropylene and carbon first stage certified to NSF/ANSI 42, an iron reduction second stage, dual pressure gauges, a steel bracket and a wrench, all in a compact pair of 10 by 4.5 inch housings.
What holds it back is evidence, not design. With 8 customer reviews and a 4.0 average, the rating distribution is unusually wide, and the honest read is that this is an unproven product rather than a proven budget iron solution.
Specification is 30000 gallons or 3 to 6 months of use, in a 16.3 by 7.5 by 15.7 inch footprint at 10.27 kg. It suits both municipal and well sources.
What the Certification Does and Does Not Cover
NSF/ANSI 42 covers particulate and carbon filtration, and the first stage holds that certification. It says nothing about iron reduction, which is a separate claim on the second stage, and nothing about bacteria either.
So the certification is genuinely useful for the sediment and chlorine half of the problem and tells you nothing about the half you are most likely buying it for. Read the iron claim as an unverified manufacturer figure given the review base.
Honest Read on the Review Base
At 8 reviews, everything about long-term durability is unverified, and the spread runs from enthusiastic to dismissive. Negative feedback reports ineffective iron removal, which is exactly the failure mode a buyer with an iron problem cannot absorb.
Treat this as a budget option for a low-iron well with sediment and taste complaints, and not as your primary iron solution. If iron is your main reason for buying, spend more and buy something with a few thousand owner reports behind it.
Capacity and the Small-System Trade
At 30000 gallons or 3 to 6 months, this is the shortest interval in the roundup alongside the other compact two-stage unit. On a busy well that means two change events a year, and each one is a chance for a leak at the connections.
What you get in exchange is a small footprint that fits where a three-housing wall would not, which matters in a cramped utility room with a pressure tank already taking the space.
The replacement set is sold separately, so confirm the part number before install day rather than at the first change.
Verdict
A reasonable first step on a constrained budget with mild sediment problems. I would not build a treatment strategy around it if iron is the contaminant driving the purchase.
11. PUREPLUS PP-WFM10BBT2-SZC – Best Clear Housing for Monitoring Filter Condition
PUREPLUS 2-Stage Whole House Water Filter, Clear Housing, for Well Water
Clear housing for visual filter inspection
Sediment and iron composite plus carbon block
30000 gallon capacity
Pressure gauge included
Pros
- Clear housing shows sediment loading without disassembly
- Composite polypropylene and iron cartridge plus a carbon block stage
- Pressure gauge included for change timing
- Compact 10 by 4.5 inch footprint
Cons
- Only 30000 gallon capacity for a whole house system
- Two-stage design covers fewer contaminants than three-stage rivals
- Replacement cartridges are proprietary rather than standard size
The clear housing is the whole point of this system, and on a well it is more useful than it sounds. You can see brown sediment accumulating in the canister and know the cartridge is loaded, instead of guessing from water taste or waiting for the pressure gauges to drift.
Media is a dual-function polypropylene sediment and iron removal composite cartridge at stage one, with a natural coconut carbon block at stage two for chlorine, odour and organics. The housing temperature range is 40 to 100 degrees F and the footprint is 16.3 by 7.5 by 15.7 inches.
With roughly 69 percent five-star ratings across 116 reviews, satisfaction centers on the transparent housing plus adequate sediment, iron and chlorine reduction. The criticism is consistently about modest capacity and narrower coverage than three-stage systems in the same bracket.
Seeing Sediment Load Before It Costs You Flow
A loaded sediment cartridge chokes flow gradually. Most owners notice as a slow pressure decline that gets blamed on something else entirely. A clear housing turns that into a ten-second visual check, and on a seasonal well where the water changes with rainfall that is worth a lot.
Pair the visual check with the included pressure gauge and you have two independent signals. When the canister browns and the gauge delta grows, you know the change is due rather than hoping.
Two Stages Versus Three and What You Give Up
Combining sediment and iron in one composite cartridge saves a housing and a connection, but it means one cartridge reaching capacity forces you to replace both functions at once. Three-stage systems let you change only the loaded stage.
With a maximum supported TDS of 1000 ppm this handles harder water than some competing units, though it still does not soften and does not reduce dissolved solids. Coverage is narrower than the three-stage systems on sediment particle size.
Proprietary Cartridges and the Ongoing Cost
The replacement cartridges are proprietary rather than standard 10 by 4.5 inch media, so you cannot substitute a generic cartridge when the shelf life runs out. That is a real ongoing cost consideration, and worth confirming pricing before you commit.
At 30000 gallons the change interval is short for a whole house system, and the three-month shelf life noted in the product details is a reminder that media sitting in storage ages even when it is not in use.
My take: the monitoring visibility is worth paying a little extra for, especially on a well whose sediment load changes with the season.
12. PUREPLUS PPW10BB-SZ – Best Budget Single-Stage Iron and Manganese Housing
PUREPLUS 1-Stage Whole House Water Filter System, Iron & Manganese Reduce
Single-stage iron and manganese resin cartridge
Universal 10 by 4.5 inch housing
Brass NPT thread junction
Pressure gauge and release valve included
Pros
- Housing built to last
- some models still in service after close to two decades
- Clear housing for visual inspection
- Brass NPT threads seal reliably with the right sealant
- Universal housing accepts standard 10 by 4.5 inch cartridges
Cons
- Supplied screws are difficult to tighten with a Phillips driver
- Standard thread tape may not seal the brass threads
- Pressure gauge sits at an awkward angle
- Non-standard O-rings with poor replacement service
This is the housing to buy if you want one durable, serviceable piece of hardware and will add media as your needs change. Long-term owners report hardware still in service after close to two decades, and the universal housing accepts PP10BB, PP10BB-CC, PPL10BB and CTO10BB cartridges from several manufacturers.
It includes a PPW10BB-SZ iron and manganese reducing resin cartridge rated to cut up to 99 percent of sand, silt, rust, dirt and scale. The clear housing, brass NPT thread junction, pressure release valve, gauge, steel bracket, wrench and O-rings are all included.
At 4.18 kg and 7.5 by 7.5 by 14.2 inches it is the most compact complete unit here, which makes it the practical choice for a tight space or a starter setup.
One Housing, Multiple Media Options
The value here is flexibility. Because the housing is universal, you can start with sediment, move to carbon block, then to an iron and manganese resin when your lab report tells you what you need. You are buying a chassis rather than a fixed solution.
That is also why it appears on lists for people who layer treatment. It is a dependable base unit that accepts standard cartridges, and it does not force a proprietary replacement cycle.
Brass Threads and the PTFE Question
Brass NPT threads seal reliably, but reliably means using the right product. Reviews specifically warn that standard thread tape may not seal them, and that liquid PTFE or a stainless-specific tape is often needed instead.
The other hardware friction points are the supplied screws, which are difficult to tighten with a Phillips head driver, and the non-standard O-ring size with poor replacement service. Grab a hex driver and a spare O-ring before you start.
Long-Term Durability and Its Limits
The durability reputation is genuine and unusual for this category. What the single housing does not do is reduce total dissolved solids, and a single stage means you need upstream sediment protection if your well runs dirty.
The pressure gauge sits at an angle that makes it awkward to read, so mark the housing and check it from a position where you can actually see the dial.
My take: the sensible single-stage starting point, and the housing I would build a larger treatment plan around.
What to Know Before Buying a Well Water Filter
Test first, size second, then pick media. That order matters more than any brand decision, and the sections below follow it.
Step 1: Test Your Well Water Before You Buy Anything
Order a certified lab panel that covers iron, manganese, hydrogen sulfide, hardness, alkalinity, pH, nitrates and coliform bacteria. Private wells are not regulated like municipal supply, so iron, sulfur, manganese, bacteria and nitrates can reach your taps with nothing between them and your family.
This is the single most common piece of advice in well-owner forums, and it is correct. Test first, then match the media to the specific contaminant rather than buying a universal system and hoping it covers everything.
Step 2: Match the Contaminant to the Media
Iron and manganese under about 3 ppm respond to reducing media such as FM15B, FM25B and KDF/GAC cartridges. Iron above that, especially 10 ppm and up, needs air injection oxidation in a mineral tank. Sediment and sand respond to micron-rated pleated or spun polypropylene stages, and 1 micron gives a noticeably clearer result than 5 micron when the well runs dirty.
Sulfur and hydrogen sulfide respond to oxidation and to catalytic carbon, and a backwashing oxidation system will handle it far better than a cartridge that saturates quickly. Chlorine and chloramine respond to carbon block, though a well treated with chlorine shock needs a much larger carbon volume than a municipal line does.
Coliform bacteria are different again. Carbon does not inactivate bacteria, so if your report shows coliform, you need UV or another disinfection step, and professional assessment matters. Nitrates need dedicated nitrate media, which none of the systems here specify.
Step 3: Size for Peak Demand, Not Average Use
Gallons per minute is a peak demand number. Showers, laundry and dishwasher running at once set the requirement, and a unit sized for average household use will show a visible pressure drop at the moment you notice it most.
As a practical guide, a one or two bathroom home can often run on a 7 to 10 GPM system, a three or four bathroom home with several occupants wants 10 to 15 GPM, and a five-plus bathroom household or one with a serious irrigation or appliance load needs 15 GPM or more. Ports matter as much as the number, which is why the 7 GPM and 3/4-inch A. O. Smith unit is tight for a busy home.
Undersizing is the most common buying error in this category and the most visible one, because the symptom shows up in the shower at 7am.
Step 4: Decide Filter or Softener, or Both
A filter removes particles, metals, odour and chlorine. A softener removes hardness by ion exchange. They are different jobs, and no cartridge system in this roundup softens water.
The most common forum question is whether a filter can replace a softener, and the answer is no. If your hardness is high enough to scale a kettle and a dishwasher decanter, add a softener after the filter, which is also the correct plumbing order because the filter protects the resin.
One caution on buying through a marketplace: read the listing’s certification claims closely rather than trusting the badge. Certification labels are easy to misapply, and our guide to pop filters for podcasting follows the same discipline of checking what a rating actually certifies before you rely on it.
Step 5: Count the Media, Not the Purchase Price
Owners regularly find that ongoing cartridge cost exceeds the purchase price over time. The honest comparison is total cost of ownership across ten years, counting media replacements, and the gap between the central tank at 600000 gallons and a compact cartridge at 30000 gallons is enormous.
Backwashing systems add a water cost rather than a media cost. Cartridge systems add media cost. Whichever you choose, write down the replacement interval and the cartridge part number on install day so future-you does not have to search for it.
Installation, Maintenance and When to Call a Plumber
Eleven of the twelve systems here are described as DIY installs, and most owners do complete them. The recurring difficulty is sealing 1-inch NPT connections, not the plumbing concept, so use abundant PTFE tape, silicone grease on O-rings, and consider push-fit fittings instead of threading plastic by hand.
Call a professional when you are adding a UV stage that needs power, when the assembly is a floor tank in a tight mechanical room, when your well pressure is already marginal, or when bacteria have been found on a report. Forum estimates for a professionally installed combined filtration and softening setup run well into the thousands, which is why the DIY path is worth attempting on a simple cartridge wall.
Pair every sediment-sensitive system with a spin-down or washable pre-filter upstream. Grit is what kills reactive media, and the pre-filter is a few dollars of hardware that protects the expensive cartridge.
Red Flags to Avoid Before You Order
Watch for listings that quote a flow rate the housing physically cannot support, universal claims that do not name a contaminant and a number, and systems sold without a stated micron rating or a media type. If a product will not state its iron ceiling, assume it does not have one.
Also be sceptical of review counts in the single digits on a new listing, as with one of the compact units in this roundup. A product with 8 reviews has not been tested by time, only by enthusiasm.
Frequently Asked Questions
What is the best well water filter system for home use?
The best well water filter system for home use is the one that matches your lab report. For iron and manganese under about 3 ppm, a two-stage carbon block and iron-reducing cartridge system rated to 15 GPM covers a family of four. For heavy iron above 10 ppm, choose an air injection oxidation tank instead, and for bacteria on your report, add UV. Always test your water first, because no universal system covers every contaminant.
What is the best whole house sediment filter for well water?
A multi-layer pleated or polypropylene sediment filter rated from 25 microns down to 1 micron is the best choice for well water, because the coarse outer layers catch grit and the fine inner layers polish the water. A four-layer 25-10-5-1 micron cartridge offers the finest result, while a washable pleated stage is the lowest long-run cost on a sediment-heavy well. Install it upstream of any reactive media.
How much does a whole house water filtration system cost for a well?
The equipment itself ranges from a compact single-stage housing to a multi-stage carbon, KDF, scale control and UV system. Cartridge systems run in the low hundreds, three-stage and central-tank designs in the mid hundreds, and UV or oxidation systems in the high hundreds to several thousand. Installation is the variable that surprises people most, and a professionally installed combined filtration and softening setup runs well into the thousands. Media replacement every year or two is a recurring cost on top.
Do I need a water softener if I have a whole house filter?
Usually yes if you have hard water, because a filter and a softener do different jobs. Filters remove sediment, iron, chlorine, odor and heavy metals, while a softener removes dissolved hardness through ion exchange. No cartridge filter in this roundup reduces hardness, so scale on kettles and dishwashers will not improve without a softener. Install the filter upstream of the softener so sediment and iron do not foul the resin.
Can a whole house filter remove bacteria from well water?
Not most of them. Carbon, KDF and sediment cartridges trap particles and adsorb chemicals, but they do not reliably inactivate bacteria. If your lab report shows coliform, you need a UV reactor, which is certified to NSF/ANSI Standard 55 for that purpose, or professional assessment of the well and wellhead. Some cartridges reduce bacterial counts incidentally, which is not the same as inactivating them.
Which Whole House Water Filter Fits Your Well
If iron sits under 3 ppm and your peak demand is under 15 GPM, the iSpring WGB21BM is the pick we would install, with the WGB32BM behind it when sediment is the co-concern. If iron is heavy and you have staining on fixtures, the Fleck air injection tank handles loads that no cartridge here will touch.
Where the goal is taste, chlorine and odor on a chlorinated supply with almost no maintenance, the A. O. Smith central tank wins on service interval. Where your report shows bacteria, the Aquasana UV system is the only one in this roundup built for it, provided your iron stays under 0.3 ppm.
For tight spaces and modest budgets, the single-stage PUREPLUS housing gives you a chassis you can build a larger plan around, and the clear-housing two-stage is the one to pick if you want to see sediment load as it happens. Whatever you choose, test the water first, size for peak demand, and install the filter ahead of any softener.
That is how you get the best whole house water filters for well water working for your house rather than for a spec sheet, and it is why the same model can be the right answer on one well and useless on the next.
